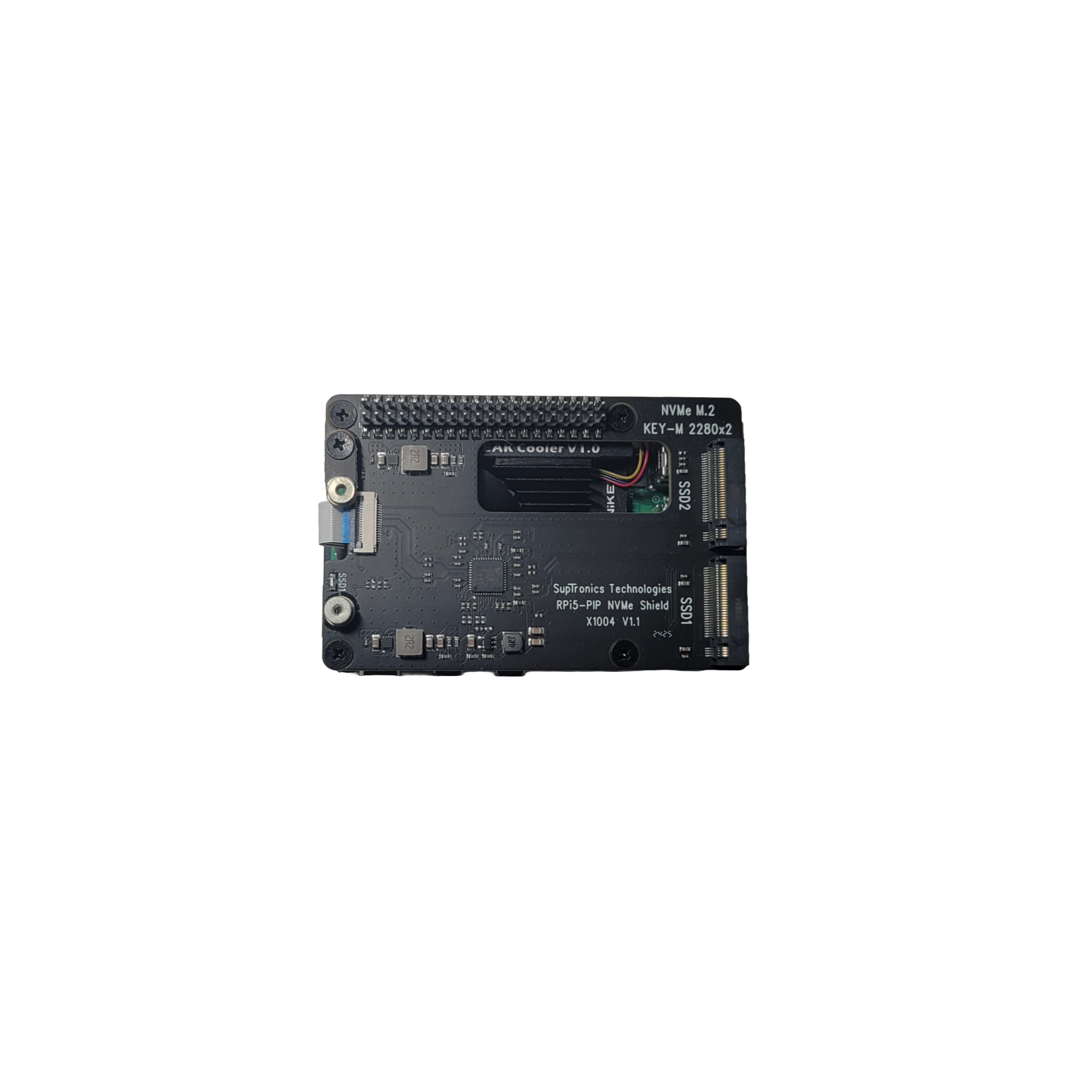

X1004 NVMe Dual SSD Shield for Raspberry Pi 5
Unleash Next-Level Storage Power: Dual NVMe Speeds, Effortless Setup, and Ultimate Compatibility
Transform your Raspberry Pi 5 into a storage powerhouse with the X1004 NVMe Dual SSD Shield—the ultimate solution for blazing-fast storage expansion. Effortlessly attach two full-size M.2 2280 NVMe SSDs (up to 8TB total capacity) and enjoy PCIe 3.0 speeds of up to 8Gbps, perfect for data-intensive projects like 4K media streaming, NAS setups, or edge computing.
Unleash Next-Level Storage Power: Dual NVMe Speeds, Effortless Setup, and Ultimate Compatibility
Transform your Raspberry Pi 5 into a storage powerhouse with the X1004 NVMe Dual SSD Shield—the ultimate solution for blazing-fast storage expansion. Effortlessly attach two full-size M.2 2280 NVMe SSDs (up to 8TB total capacity) and enjoy PCIe 3.0 speeds of up to 8Gbps, perfect for data-intensive projects like 4K media streaming, NAS setups, or edge computing.
Unleash Next-Level Storage Power: Dual NVMe Speeds, Effortless Setup, and Ultimate Compatibility
Transform your Raspberry Pi 5 into a storage powerhouse with the X1004 NVMe Dual SSD Shield—the ultimate solution for blazing-fast storage expansion. Effortlessly attach two full-size M.2 2280 NVMe SSDs (up to 8TB total capacity) and enjoy PCIe 3.0 speeds of up to 8Gbps, perfect for data-intensive projects like 4K media streaming, NAS setups, or edge computing.
Why Choose the X1004?
✅ Dual NVMe Slots, Zero Compromises
8TB Total Storage: Run two 4TB SSDs simultaneously for massive data storage.
PCIe 3.0 Speed: Transfer files at up to 8Gbps—15x faster than traditional USB 3.0 storage.
Boot Directly from SSD: Skip the microSD card and enjoy faster boot times and system responsiveness.
✅ Designed for Raspberry Pi 5
Plug-and-Play Installation: Mounts directly on top of your Pi 5 like a HAT—no soldering or drivers needed.
Full GPIO Access: Keep using your favorite HATs and accessories with the exposed 40-pin header.
Thermal Efficiency: Works seamlessly with the Raspberry Pi’s official active/passive coolers for optimal heat dissipation.
✅ Robust Power & Reliability
Dual 3.5A Power Delivery: High-efficiency DC/DC converters ensure stable power for even the most demanding SSDs.
Auto Power Management: Safely powers down with your Pi 5 using HAT+ STANDBY mode.
LED Status Indicators: Blue LEDs show real-time read/write activity and power status.
Key Features
Supports Two Full-Size M.2 2280 NVMe SSDs (PCIe 2.0/3.0 compatible).
PCIe Packet Switch: Minimizes latency and maximizes throughput for both drives.
Stackable Design: Add other HATs on top without sacrificing functionality.
Durable Build: Reinforced mounting holes and standoffs protect your SSDs from vibration and heat.
Technical Specifications
Compatibility: Raspberry Pi 5 only (not backward-compatible).
Interface: PCIe 2.0 (5Gbps) or PCIe 3.0 (8Gbps) via 16-pin FFC cable.
Power Input: 5V via GPIO header and FFC connector.
Output: 3.3V @ 3.5A per SSD (7A total).
Dimensions: Matches Raspberry Pi 5 footprint for seamless integration.
Ideal For
Home Media Centers: Stream 4K movies, music, and photos from your own NAS.
Edge Computing Projects: Handle large datasets for AI/ML, robotics, or IoT.
Developers & Tinkerers: Build high-speed servers (Pi-hole, Plex, Nextcloud) with enterprise-grade storage.
Content Creators: Edit videos or store RAW photos directly on your Pi.
What’s Included?
X1004 NVMe Dual SSD Shield
30mm PCIe FFC Cable x1
Mounting Hardware (standoffs x4, screws x8)
